Smart Dimensions
Tool for creating dimensions for selected elements in a View. What should be dimensioned, to where dimensions should snap, where dimension lines should be located – everything is defined in Configurations. Smart Dimensions can be used as a separate tool, or it can be incorporated into Shop Drawing Configurations.

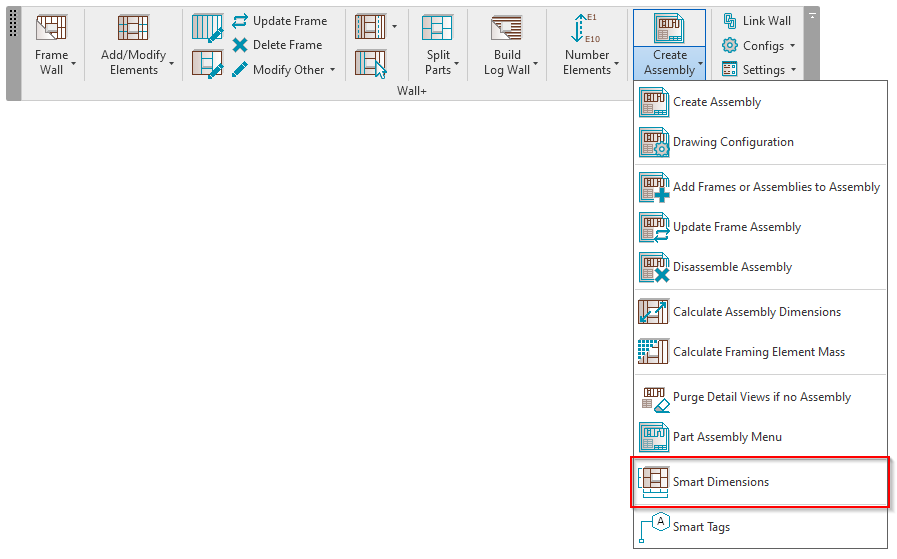

Smart Dimensions tool is accessible through Framing Toolset:
