Configuration Setup
Last updated
Last updated
Smart Views configuration window:
Let's go through each of the columns.
Create Detail View - turn ON to create the selected view when using this configuration
View Count - select how many of the same view should be created

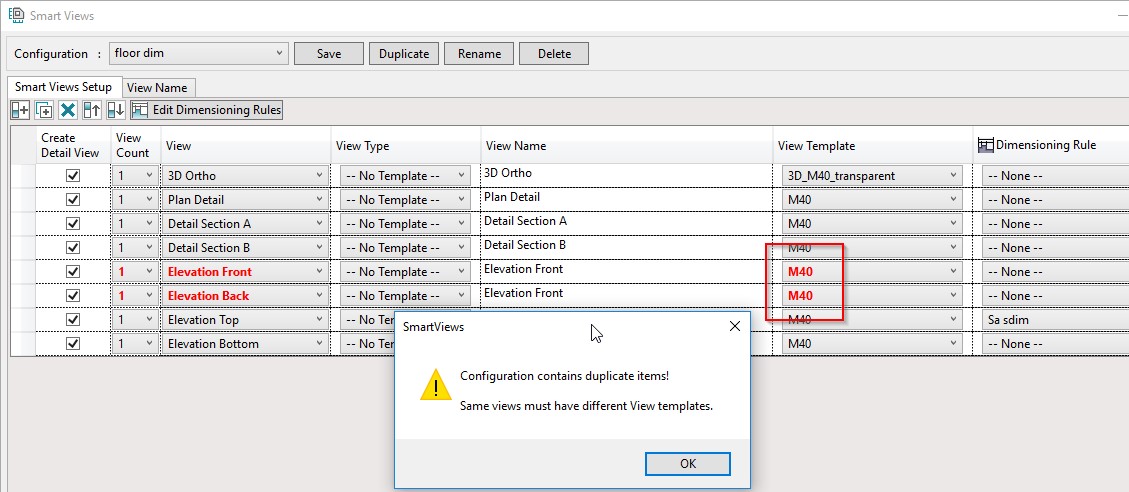

In Smart Views, it is not possible to have the same Type of Views, like Front, Top, etc. with the same View Templates. If you try to do that, you get this message:
To avoid that, change the View Template:
View - type of View that you want to create: Front, Top, Left, etc., plus flipped versions of vertical and horizontal sections, like Detail Section Left (B), Detail Section Back (A), and Plan Detail Up.
View Type - select view Type. This could be used to use special heads, tails for these Detail Views or using specific Type name will be easier to setup filters to show/hide them in project views.
View Name - Type in the name of the view.
View Template - Select the View Template that should be used for the selected view to control visibility settings for that view.
Dimensioning Rule - Select dimensioning rules for every view.
Dimensioning Rules uses Smart Dimensions configurations. Read more about Smart Dimensions here.
You can open the Smart Dimensions windows by clicking the Edit Dimensioning Rules button.
Tagging Configuration - Tag elements, defined in Tagging rules
Read more Smart Tags here.
Additional Configuration properties
Isolate Selected - hides all, except selected element.
Isolate Selected Categories - hides all, except selected categories.
Include Hosted Elements - used together with previous two options, this keeps hosted elements visible in the view.
Crop Region Visible - by default, crop view is Hidden; if you want to see it, turn this option ON.
Ignore Identical - works with Create View command. Ignores identical elements in a group of selected elements. Compares only between selected elements, not all elements in the project. E.g. - select 20 structural framing elements, select Create Views, it will create views only for unique elements.
Dimension isolated element - available only if Isolate Selected is turned on. This will apply one of the Smart Dimensions features in all views of the isolated element. It has its own configurations. Such dimensions can't be created with general Smart Dimensions configurations.
