# Dialog

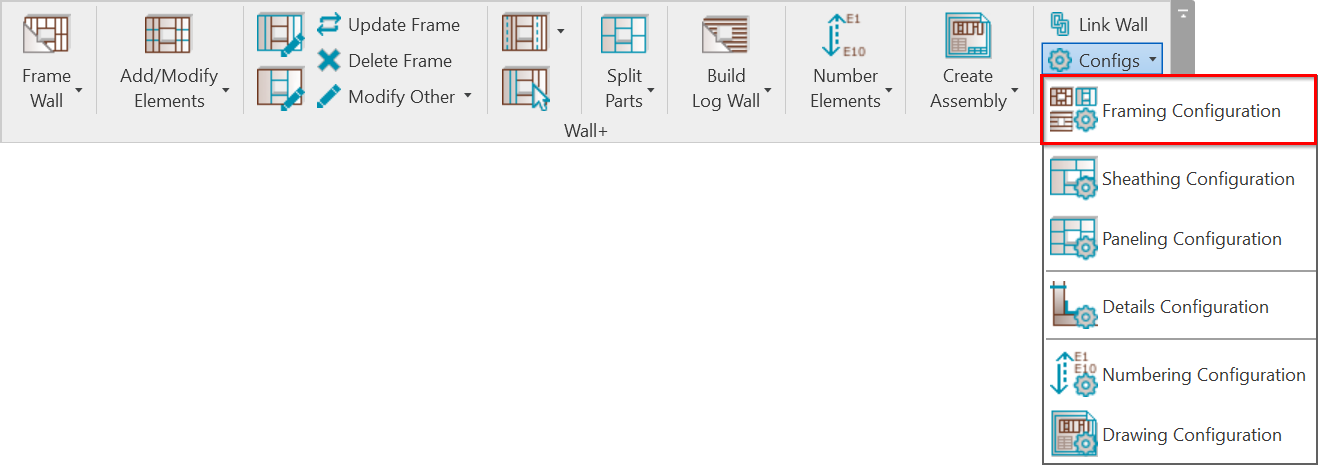

**Framing Configuration** may be found in two locations:

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FMuC1IvGe8es5voWNcf3Q%2F1.jpeg?alt=media)

or:

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FlYyA5yKK9iBwKzUqeOsF%2FC_onWgtW50IGHXgsmVmB4pYm-ProZvybgQ.png?alt=media&#x26;token=73725617-8d99-4f16-a708-dff6095b0488" alt=""><figcaption></figcaption></figure>

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F4tlwcG94WEOBupOJfI8y%2F2.jpeg?alt=media)

**Framing Configuration** – defines all framing settings. It allows user to configure and save settings for all sorts of frames – **Main Wall Frames**, **Secondary Frames**, **Vertical** and **Horizontal Nailers**, **Vertical** and **Horizontal Sidings**, **Wood Logs**.

It is very a versatile tool with thousands of possibilities.

**Main Divisions**

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2Fy1iogj4c4l4nzXjLYios%2F3.jpeg?alt=media)

The **Framing Configuration** dialog is divided into three main parts: **Top (1)**, **Left (2)** and **Right (3)**.

In the Top part, choose the **Configuration Type** that you want to use and **Configuration Name** that you want to modify. The Left part lets you select the framing type going in an easy top-to-bottom way. In the Right part are the settings.

**Material Class** - defines material.[ Wood Framing](https://agacad.com/products/wood-framing) uses Wood and [Metal Framing](https://agacad.com/products/metal-framing) uses Steel

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FS8rBlqmmdW1ZwXPImum2%2F4.jpeg?alt=media)

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F8x2pRTJAuFkW3QvUL7GJ%2F6.png?alt=media)
