# Select Elements

### Select Elements

![](/files/C9Yr7IdaaXQEUIOK2RCo)

**Select Elements** – features for quickly selecting elements by different rules.

### Select Elements by Member Type in Frame

![](/files/qIJXof8ywGb9krEPHchO)

**Select Element by Member Type in Frame** – selects all framing members of the same type from the frame.

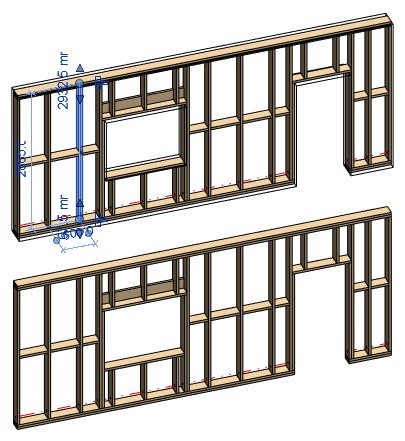

*Example: Select any stud → **Select Element by Member Type in Frame** → All studs from the frame will be selected:*

![](/files/3MmvuwvnoaVasc2CPmsM)

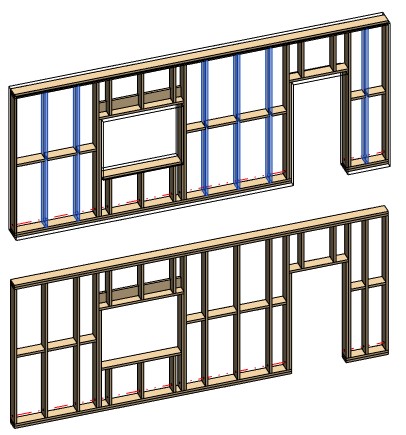

*Result:*

![](/files/cv3SIn85cBcKuBneZkYp)

### Select Elements by Member Type in all Frames

![](/files/EMQTHLYblFVHn51qJz69)

**Select Element by Member Type in all Frames** – selects all framing members of the same type from all frames in the project.

*Example: Select any stud → **Select Element by Member Type in all Frames** → All studs from all frames in the project will be selected:*

![](/files/8zoobdwqJ1Hyt9KguJyk)

*Result:*

![](/files/8ULMUNvq23y8cXsyjgWm)

### Select Elements by Member Type in all Frames by Level

![](/files/7Di6uyL0ZUGPbYte89dO)

**Select Element by Member Type in all Frames by Level** – selects all framing members of the same type from all frames in the same level.

*Example: Select any stud → **Select Element by Member Type in all Frames by Level** → All studs from all frames in the same level will be selected:*

<figure><img src="/files/JF2JP9H3DlcPEAKmUjZE" alt=""><figcaption></figcaption></figure>

*Result:*

<figure><img src="/files/fZKLbiggwFbSJx7u0I7K" alt=""><figcaption></figcaption></figure>

### Select all Frame Elements

![](/files/AuPJJRlNWVZmyUJ2HHpy)

**Select all Frame Elements** – selects all framing members from the wall.

*Example: Select any stud → **Select all Frame Elements** → All elements, including studs, plates, trimmers, etc. will be selected:*

![](/files/HrDCgh14qan3ClFiwGpF)

*Result:*

![](/files/9ZhCjh59FTgxD6b9WkUo)

### Select Frame Modules

![](/files/sKFqDM2v0wCY3hMKGk0p)

**Select Frame Modules** – selects preassembled elements.

*Example:* *Select any stud → **Select Frame Modules** → All elements set as preassembled are selected, like opening kings, trimmers, cripples, etc.:*

![](/files/3vUDGeuhrr0gGlzGwErV)

### Select Main Parts by Layer in Wall

![](/files/RyI2FKcThOmWgyoSAxXC)

**Select Main Parts by Layer in Wall** – selects main parts in the framed wall.

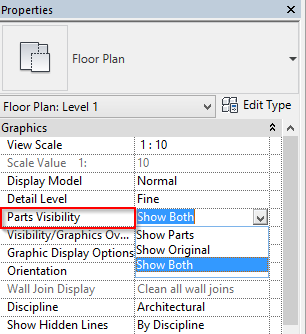

Please make sure **Show Parts** or **Show Both** is selected in **View Properties** → **Parts Visibility**:

![](/files/wBzrZkydPd1PymrA3Ic2)

*Example: Click **Select Main Parts by Layer in Wall** and you will able to select only main parts from the framed wall:*

![](/files/upuA5ALaCmz0aUUV4NUY)

### Select Main Parts by Layer in Level

![](/files/JGWIM2Zmr37QHuOhBGrh)

**Select Main Parts by Layer in Level –** selects main parts in the same type of framed walls in the same level.

Please make sure **Show Parts** or **Show Both** is selected in **View Properties** → **Parts Visibility**:

![](/files/xxFzLsUgJqe3Er1fhWkU)

*Example: Click **Select Main Parts by Layer in Level** → Select one main part in the framed wall → All main parts of the same type in the same level will be selected. In this example, the main parts of external walls in the same level are selected:*

![](/files/Y4PodqRha6mb01DKmcSY)

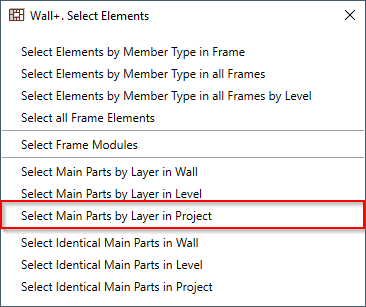

### Select Main Parts by Layer in Project

<figure><img src="/files/VKmBdmvMB38DDOBDsTDa" alt=""><figcaption></figcaption></figure>

**Select Main Parts by Layer in Project –** selects main parts in the same type of framed walls in the whole project.

Please make sure **Show Parts** or **Show Both** is selected in **View Properties** → **Parts Visibility**:

<figure><img src="/files/RnlcCeNij1A74ZItBMEF" alt=""><figcaption></figcaption></figure>

*Example: Click **Select Main Parts by Layer in Project** → Select one main part in the framed wall → All main parts of the same type in the whole project will be selected. In this example, the main parts of external walls are selected from all levels:*

<figure><img src="/files/nAuqM4KF9IbBkoVOXIFm" alt=""><figcaption></figcaption></figure>

### Select Identical Main Parts in Wall

<figure><img src="/files/rcVEyOGjOH5MfrD4n8Fw" alt=""><figcaption></figcaption></figure>

**Select Identical Main Parts in Wall –** selects identical main parts in the framed wall.

Please make sure **Show Parts** or **Show Both** is selected in **View Properties** → **Parts Visibility**:

<figure><img src="/files/MsUZ7zpYYtfhYKeFLzkh" alt=""><figcaption><p>`</p></figcaption></figure>

### Select Identical Main Parts in Level

<figure><img src="/files/L48iBRzPznamWqLmSWTi" alt=""><figcaption></figcaption></figure>

**Select Identical Main Parts in Level –** selects identical main parts of framed walls in the same level.

Please make sure **Show Parts** or **Show Both** is selected in **View Properties** → **Parts Visibility**:

<figure><img src="/files/eOs3On0434oSWJpfCRVb" alt=""><figcaption></figcaption></figure>

*Example: Click **Select Identical Main Parts in Level** → Select one main part in the framed wall → All identical main parts in the same level will be selected:*

<figure><img src="/files/URVqQNLFbcACguustv3d" alt=""><figcaption></figcaption></figure>

### Select Identical Main Parts in Project

<figure><img src="/files/KEu3Wq3punrXfjII03iW" alt=""><figcaption></figcaption></figure>

**Select Identical Main Parts in Project –** selects identical main parts of framed walls in the whole project.

Please make sure **Show Parts** or **Show Both** is selected in **View Properties** → **Parts Visibility**:

<figure><img src="/files/JxE9mH2gQMg3MUj6QJFP" alt=""><figcaption></figcaption></figure>

*Example: Click **Select Identical Main Parts in Project** → Select one main part in the framed wall → All identical main parts in the whole project will be selected. In this example, identical main parts are selected from all levels:*

<figure><img src="/files/yIUni9KOFIvj2qmuFX9l" alt=""><figcaption></figcaption></figure>


---
