# Shop Drawing Configuration

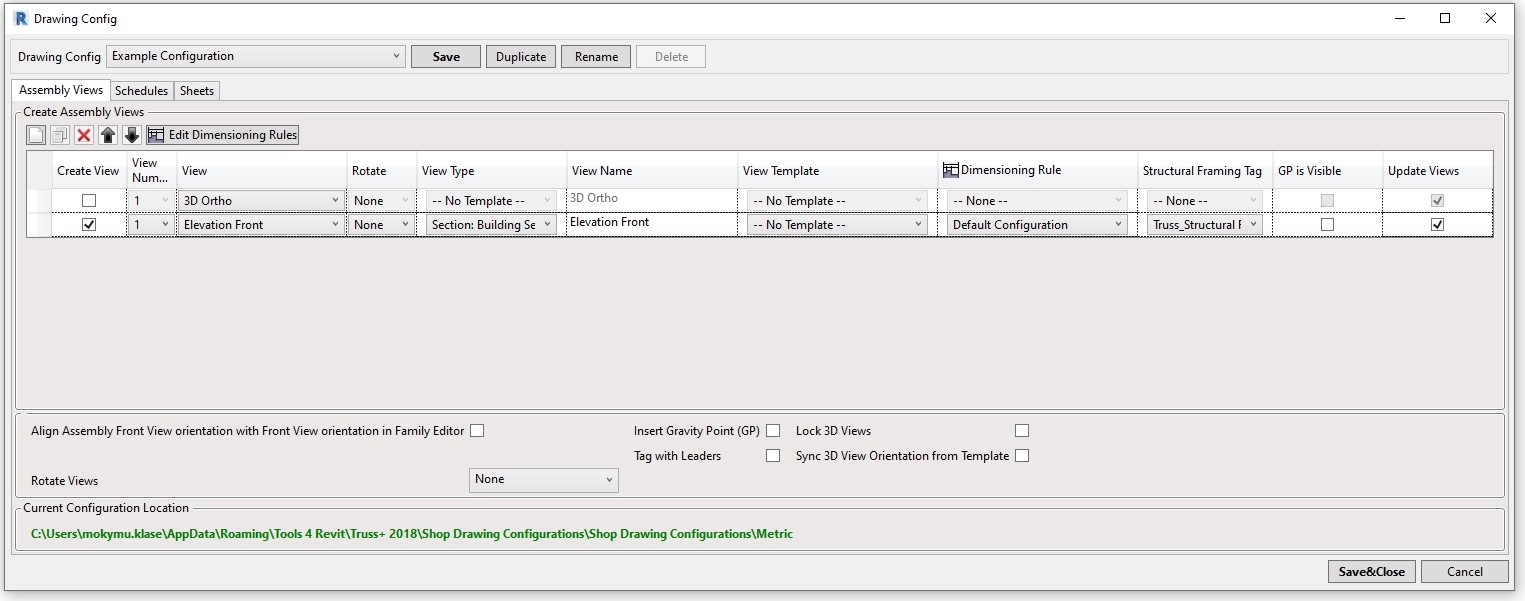

**Truss+** will collect all elements from a truss and make an assembly with predefined views, add dimensions, add tags, make sheets, and put the views into the sheets

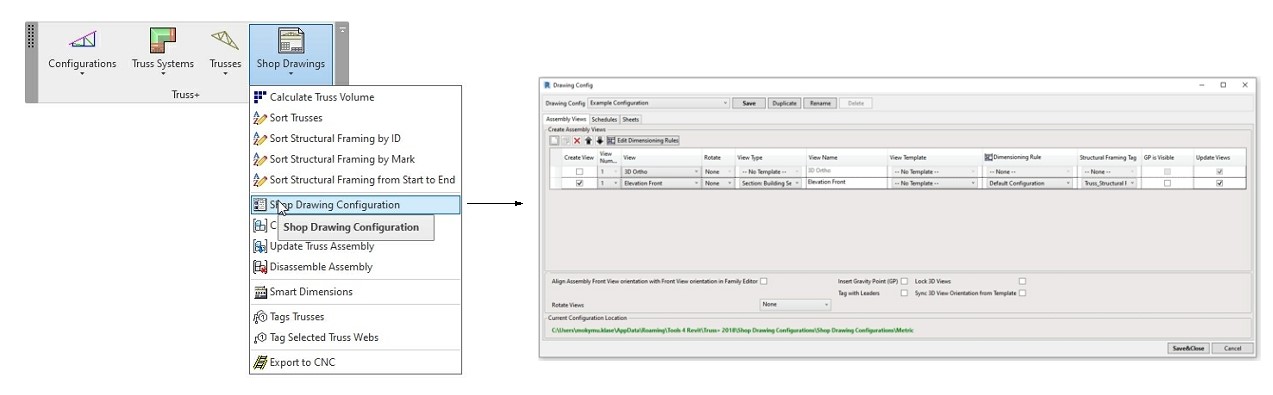

• Select **Shop Drawing Configuration** function directly from **Truss+** menu

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F6Rkha60NnKCS9wEnMvYh%2F0.jpeg?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FkI0tg4Dhbv7xEzOtUqwi%2F1.jpeg?alt=media" alt=""><figcaption></figcaption></figure>

*The basic shop drawing workflow consists of the following steps:*

1. *Truss+ → define **Drawing Configuration***
2. *Truss+ → make shop drawings for one or multiple trusses using **Create Assembly***
3. *Truss+ → number the framing members using **Sort Trusses***
4. *Drag shop drawing views onto the sheet for one assembly and save it as a sheet template*
5. *Truss+ → make shop drawings for other truss segments*
6. *Truss+ → update shop drawings if any changes have been made to the mode*

* Configurations can be saved, duplicated, renamed, and deleted
* You can check the location of configurations under **Current Configuration Location**:

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FYjJYqo4mwKx6yuqD1clS%2F2.jpeg?alt=media)

* **Shop Drawing Configuration** allows to set up and modify assembly views, schedules, and sheets respectively.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FH9SpdbkqLw1FuRJblJNj%2F3.jpeg?alt=media)

* Select, add or modify Views that must be created for truss assembly
* Select corresponding View Templates
* Select tag type for tagging of truss members - structural framing elements
* Select Title block, Part list and Material Takeoff templates

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FfND8P7zO9zS2epXTFEyF%2F4.jpeg?alt=media)

* Sheet Template can be used once first assembly of truss is built and the sheet layout of views and schedules is complete

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F3v0yaAYnU95rjODjaAdc%2F5.jpeg?alt=media)

Using **Create Assembly Views** additional buttons you can:

* Create new view
* Duplicate view
* Delete view
* Move up view
* Move down view

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FSmqeYx4RActDOJ0tBf76%2F6.jpeg?alt=media)

### EXPORT TO CNC

Trusses created with **Truss+** may be exported for production to various CNC machines or CAD/CAM production lines. Optional CNC export eliminates duplicate work and reduces the margin of error. It is a major advantage for integrated workflow.

For more details about **Export to CNC** functionality please contact customer support.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FVr6sDQBt6EU9BeO9wDIR%2F7.jpeg?alt=media)
