# Cuts not visible in blocking/nogging plates

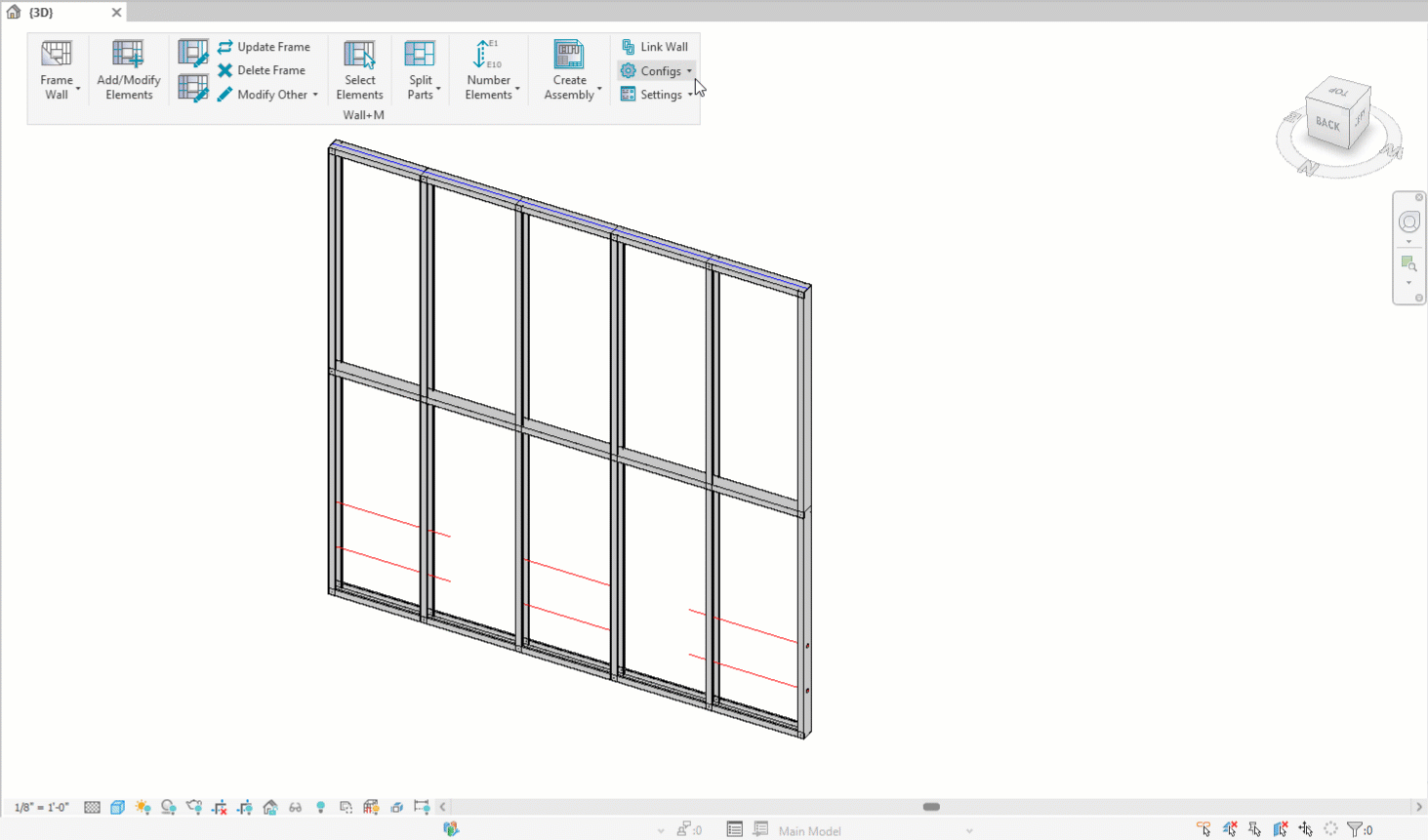

<figure><img src="/files/2sRzRHenlZUsSXJqGDfx" alt=""><figcaption></figcaption></figure>

### Solution 1

1. Go to **Framing Configurations** > **Common Settings** > **Modify Configuration Settings.**
2. Make sure the **Cut Framing Elements** box is checked.
3. Save the configuration.
4. Go to **Modify Other** > **Update Wall** **by Wall Link** or simply click on **Frame Wall** and **re-frame the wall**:

<figure><img src="/files/lr5wPAy8P6cQ7f2qehsg" alt=""><figcaption></figcaption></figure>

### Solution 2

1. Go to **Framing Configurations** > **Blocking/Nogging** settings.
2. In the **Custom Layout** settings, find the **Cut** and **Cut Studs** columns.
3. Change the values from **None** or to **Cut Bridging/Nogging.**
4. Go to **Modify Other** > **Update Wall** **by Wall Link** or simply click on **Frame Wall** and **re-frame the wall:**

<figure><img src="/files/vY8WZvgY2JBGlVJjELMg" alt=""><figcaption></figcaption></figure>

### Solution 3

If you've modified the **I\_MF C+C\_CH Stud** (Imperial) or **M\_MF C+C\_CH Stud** (Metric) family, check if the family still has the void (orange wireframe around the family):

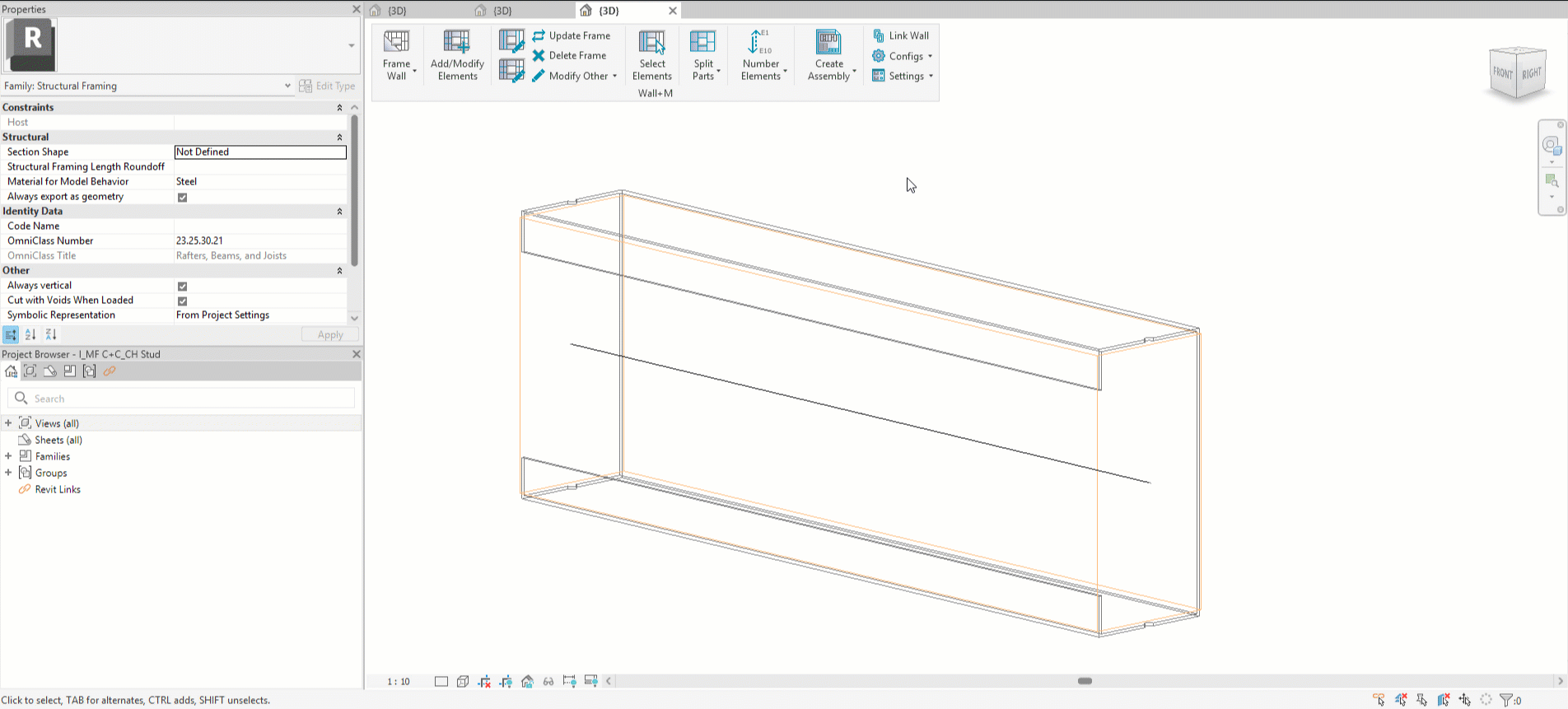

<figure><img src="/files/9zx2IuE8H8cBE1mKWhoO" alt=""><figcaption></figcaption></figure>

If it doesn't have the void, you'll need to reload the original stud family in one of the three ways:

#### Option 1

You can load it from your older projects but make sure it has the void.

#### Option 2 (recommended)

1. Open a new project. Go to **Settings** > **Load Families** > **Main Families**
2. Find the family in the **Project Browser** under the **Structural Framing** category.
3. Open the family. Load it into your desired project and close the family.

#### Option 3

Find it on your computer. Once you have found the family, **drag and drop** it into your project.

* If you're using **Revit 2025** or later versions:

*C:\Users\Username\AppData\Roaming\ARKANCE TOOLS\2025(or 2026)\Wall(or Floor or Roof Metal Framing\Latest version\Wall+M(or Floor+M or Roof+M)\Libraries\Metric(or Imperial)\Library\Main Families*

* If you're using **Revit 2023** or **2024**:

*C:\Users\Username\AppData\Roaming\TOOLS 4 BIM\2023(or 2024)\Wall(or Floor or Roof Metal Framing\Latest version\Wall+M(or Floor+M or Roof+M)\Libraries\Metric(or Imperial)\Library\Main Families*

***

{% hint style="info" %}
If you can't find the answers you're looking for, please [contact our support team](https://emea.support.arkance.world/hc/en-gb/requests/new).
{% endhint %}


---
