# Split Elements

### Split Elements

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2Fdf0GjOfDPvcoeMkl7CqC%2F0.jpeg?alt=media)

**Split Elements** – features for splitting joists, rim joists, bridging/nogging elements by different rules.

### Split Rim Joists Automatically

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F63nkWYs9p2cgqWXESxJB%2F1.jpeg?alt=media)

**Split Rim Joists Automatically** – splits rim joists for selected roof according to predefined settings in **Framing Configuration**.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FKMtDzQkirbbBvwe57eCs%2F2.jpeg?alt=media)

Split settings come from **Configs** → **Framing Configuration** → **Common Settings** → **Modify Configuration Settings** tab:

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FvUIDN6PpU8oeUv0U3Er6%2F3.jpeg?alt=media)

**Minimal/Maximal Length of Split Rim/Joist** – predefines min/max length for splitting rim joists.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FkiusOWPcmnoB1Td1LUPw%2F4.jpeg?alt=media)

Also, pay attention to **Offset Distance of Split** parameter in **Configs** → **Framing Configuration** → **Common Settings** → **Modify Configuration Settings** tab:

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F6CSkRmdfpRhlKd2lNgIm%2F5.jpeg?alt=media)

**Offset Distance of Split** – defines splitting distance for selected rim joist from selected joist.

*Example: **Offset Distance of Split** = 300mm:*

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FUySlndZra4Flrne1z2qp%2F6.jpeg?alt=media)

### Split Rim Joists Automatically for All Frames

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FFBtOFxWJ8fH5W9X0mswf%2F7.jpeg?alt=media)

**Split Rim Joists Automatically for All Frames** – splits rim joists for all roofs in the current project according to predefined settings in **Framing Configuration**.

### Delete Splits

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FSLdeVKsktfjERfO46NFH%2F8.jpeg?alt=media)

**Delete Splits** – resets selected roof rim joists to original length before splitting.

*Example: Rim joists were split...*

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FWKj3ZxvAeAPea1GrLPNj%2F9.jpeg?alt=media)

*...after using **Delete Splits**, the rim joist is whole again:*

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F2QAN5NFwrKoWfTOHjups%2F10.jpeg?alt=media)

### Split Rim Joist Manually

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FMXPELmcHitmzIBHnwz2C%2F11.jpeg?alt=media)

**Split Rim Joist Manually** – splits selected rim joist by selected joist.

1. *Select a joist which will split rim joist;*
2. *Select a rim joist which will be split.*

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FAxjERgvJyCN6JaBcrfUk%2F12.jpeg?alt=media)

Also, pay attention to **Offset Distance of Split** parameter in **Configs** → **Framing Configuration** → **Common Settings** → **Modify Configuration Settings** tab:

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2Fq2FXtky7Y6jKxXCCRxTv%2F13.jpeg?alt=media)

**Offset Distance of Split** – defines splitting distance for selected rim joist from selected joist.

*Example: **Offset Distance of Split** = 300mm:*

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2Fi0aM7R9Y9P8Ix1hKz3i1%2F14.jpeg?alt=media)

### Split Bridging/Nogging

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FGnkXRriXYZIjEtRTkU1y%2F15.jpeg?alt=media)

**Split Bridging/Nogging** – splits selected bridging/nogging by selected joist.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F05Ott0vSGOuH0b44UZOi%2F16.jpeg?alt=media)

### Split Joist

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FKMPP8sRqHf9xxrabYt7Y%2F17.jpeg?alt=media)

**Split Joist –** splits selected joists by predefined settings.

*You can select one joist or multiple.*

*For joist splitting you will see a dialog with settings where you can predefine the offset, spacing, number of splits, minimal length of last element, etc.*

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F3unV3wMiVzmlrYtZwcXG%2F18.jpeg?alt=media)

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FHkpO3Z68KyWIcdmdTkwb%2F19.jpeg?alt=media)

### Delete Joist Split

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F4jFATDVsPOvcvbZfJm7b%2F20.jpeg?alt=media)

**Delete Joist Split** – resets selected joists to original length before splitting.

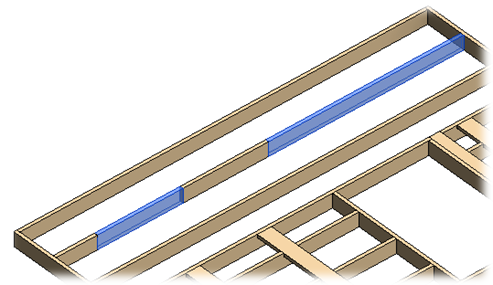

*Select the joists that were split:*

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FCnwdAUvoNNIyM9W9PrpT%2FaVubQa9wwbO-u4rIOttfM-_4F3350JqDCw%20(1).png?alt=media&#x26;token=74d89d93-6644-43c0-9ce3-feee586331c1" alt=""><figcaption></figcaption></figure>

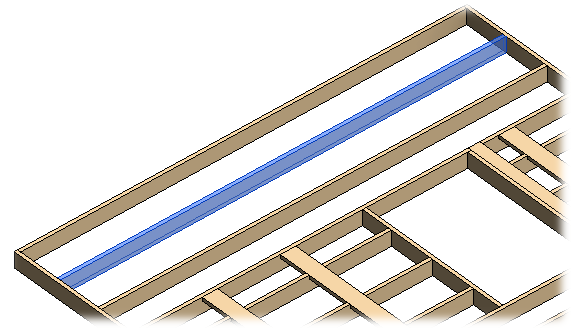

*After clicking **Delete Joist Split**, the joists are restored to original length:*

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F5H89AHEHQenQG74e7NE7%2FhyhRwF9UvTuyg_l59DuPwiH4UMcs7Rhngw%20(1).png?alt=media&#x26;token=abed8f08-9b33-4219-ab07-bb969f3300f6" alt=""><figcaption></figcaption></figure>
