Flip (Mirror) Orientation

This command writes the flip/mirror orientation (determines if a Mirror command was used) for the elements of the selected category to the assigned text parameter or newly-created shared parameter.

Workflow

  1. The first step is to select the category.

  2. Then, select or create a parameter to write flip/mirror orientation values. Click OK.

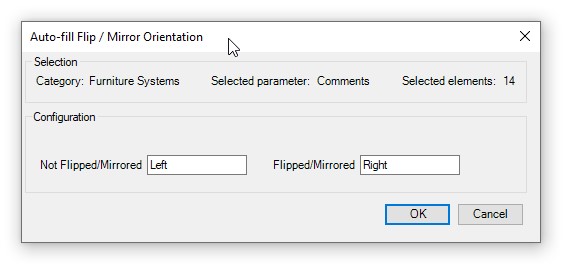

  3. Define the text values for 'Not Flipped/Mirrored' and for 'Flipped/Mirrored' elements.

  1. OK to run the command.

Results
