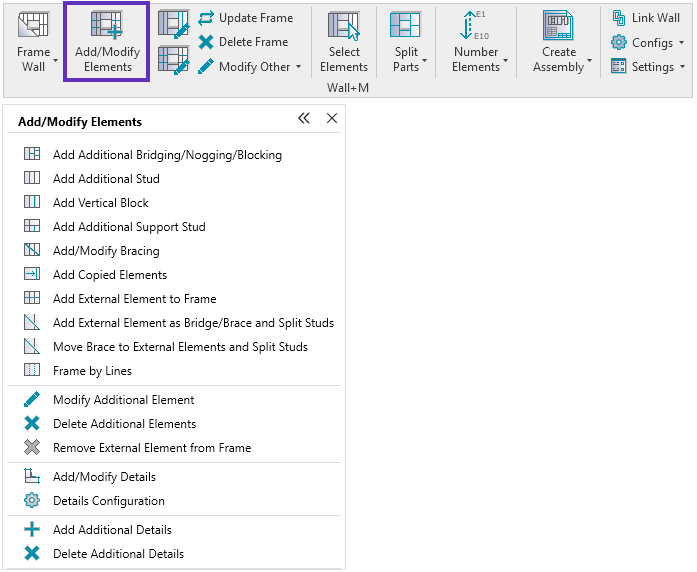

Add/Modify Elements

Add/Modify Elements – features for adding/modifying additional studs, support studs, bridging/noggin elements, etc.

Add Additional Bridging/Nogging/Blocking

Add Additional Bridging/Nogging/Blocking – adds additional bridging/nogging/blocking between selected two studs with predefined settings.

Read more about every feature here.

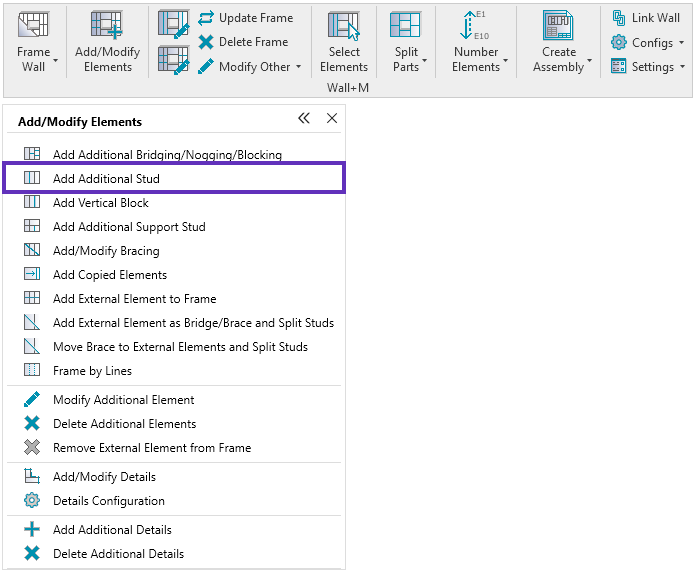

Add Additional Stud

Add Additional Stud – adds additional stud into selected frame with predefined settings.

Read more about every feature here.

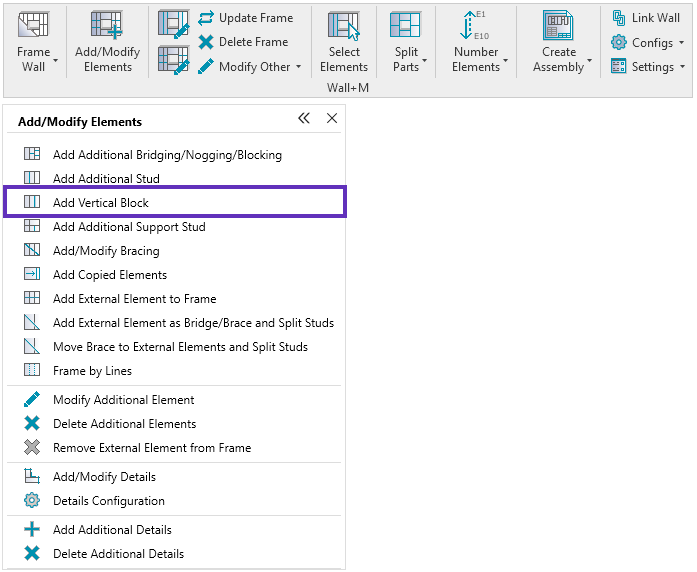

Add Vertical Block

Add Vertical Block – adds additional vertical block using studs into selected frame with predefined settings.

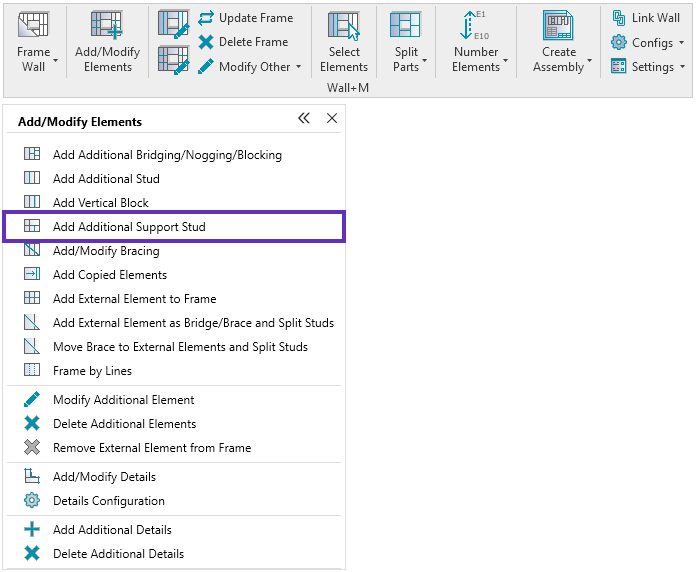

Add Additional Support Stud

Add Additional Support Stud – adds additional support stud between two selected plates.

The features are the same as Add Additional Stud.

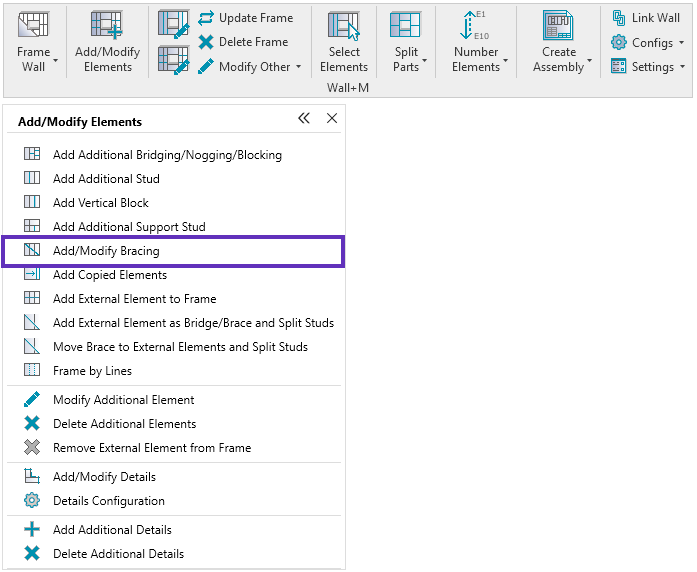

Add/Modify Bracing

Add/Modify Bracing – features for adding/modifying braces between studs or plates, corner braces and brace groups.

Read more about every feature here.

Add Copied Elements

Add Copied Elements – adds copied elements to the existing frame system for later scheduling and inclusion in shop drawings.

Sometimes it is easier to copy some elements in the frame, but later it needs to be scheduled and included into shop drawings using Floor+. In such cases, use Add Copied Elements.

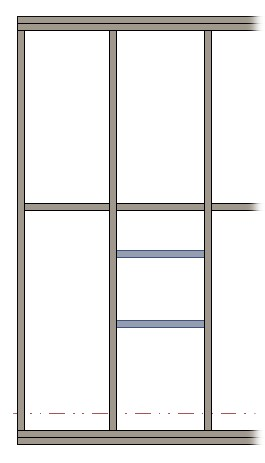

Example: Two bridgings were manually copied with Revit Copy function. To include in existing frame system, select these bridgings → Add Copied Elements:

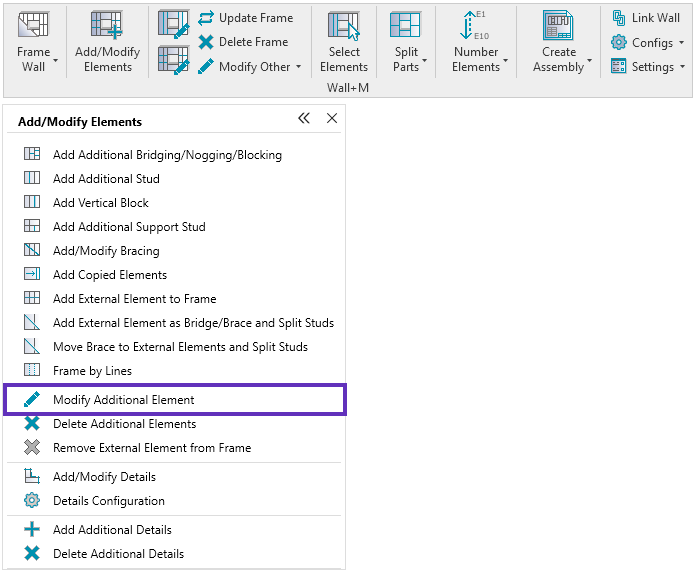

Modify Additional Element

Modify Additional Element – modifies selected additional element with custom settings if you need to make unique changes. All settings are the same as were used in the adding process.

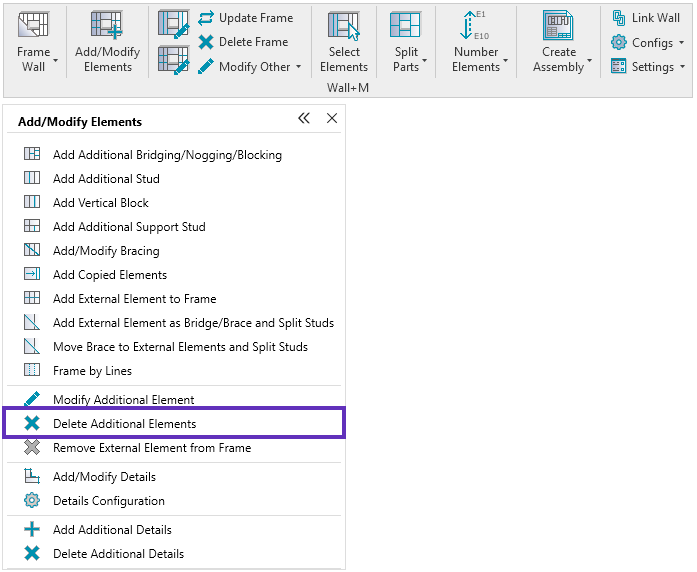

Delete Additional Elements

Delete Additional Elements – deletes any previously created additional bridging/nogging/blocking, stud, vertical block, or support stud.

Add Copied Elements

Add External Element to Frame

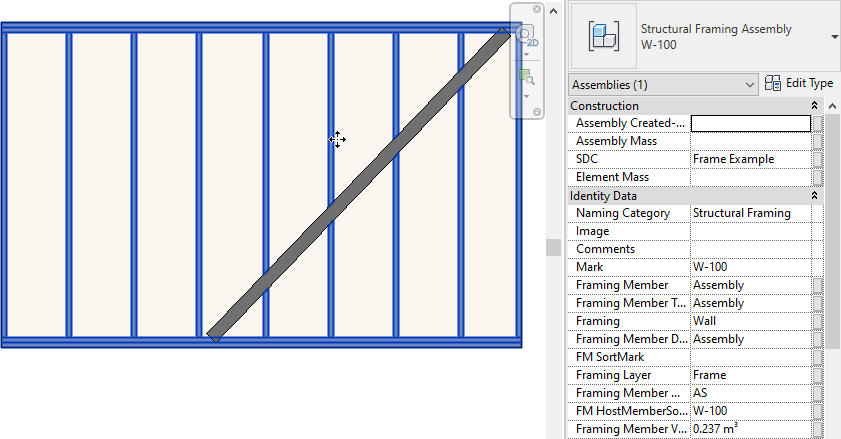

Add External Element to Frame – adds external element to the frame. Select external element or multiple elements and then the wall frame where it should be added. Such element will be included while creating assemblies for shop drawings.

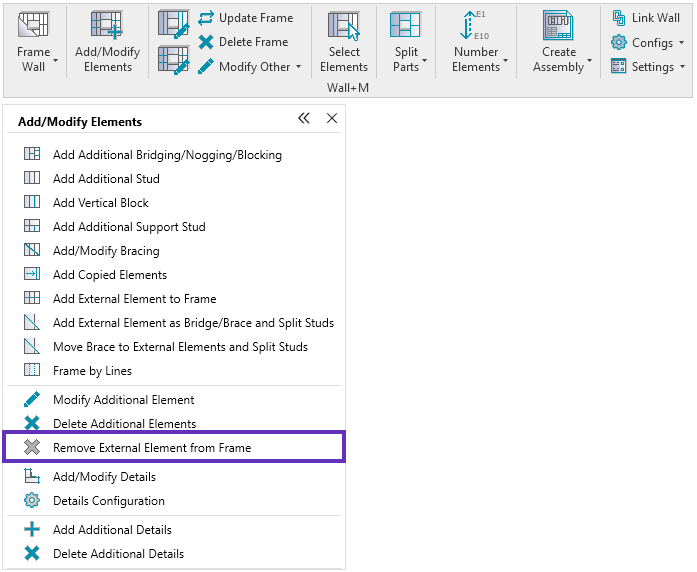

Remove External Element From Frame

Remove External Element From Frame – removes external element from the frame which was previously added to the wall frame.

Add External Element as Bridge/Brace with Stud Split

Add External Element as Bridge/Brace with Stud Split – adds external element to the wall frame and splits the studs. Select external element or multiple elements and then the wall frame where it should be added.

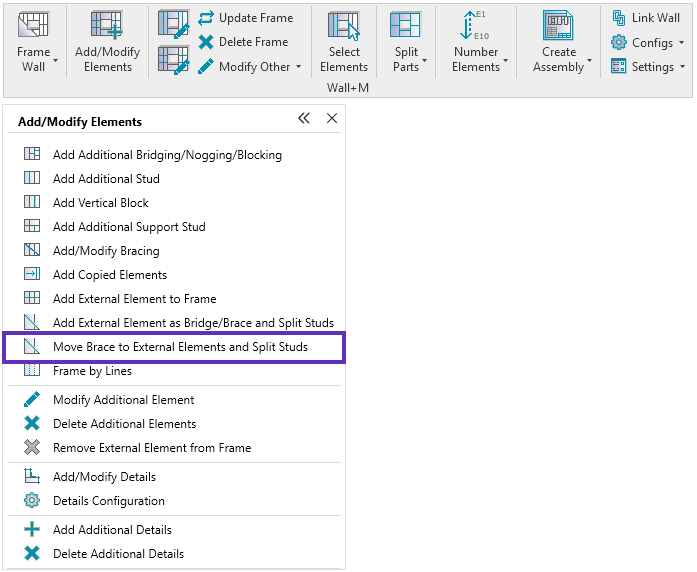

Move Brace to Added External Element Group

Move Brace to Added External Element Group – removes selected brace from frame and splits studs. The braces become external element. Usually used in Floor+.

Example, studs before using the function:

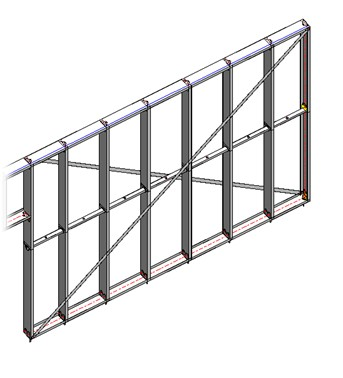

Example, studs after using the function:

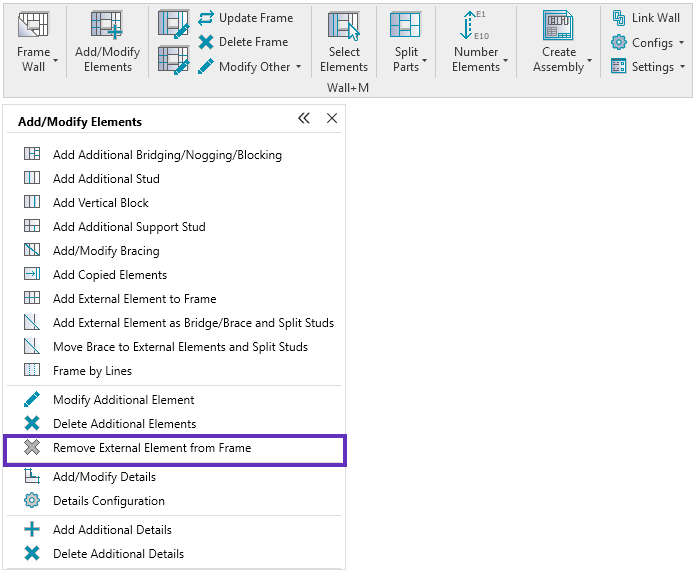

Remove External Elements from Frame

Remove External Elements from Frame – removes external elements from the frame which was previously added to the wall frame.

Example, the element becomes external and will not be added to the frame assembly:
