# Configuration Settings

### Finding Framing Configuration dialogue

**Framing Configuration** may be found in two locations:

<figure><img src="/files/BCUDrK6G5x43GoCvBveE" alt=""><figcaption></figcaption></figure>

or:

<figure><img src="/files/pDauZntxi071ljG1QU4E" alt=""><figcaption></figcaption></figure>

### Configuration Settings

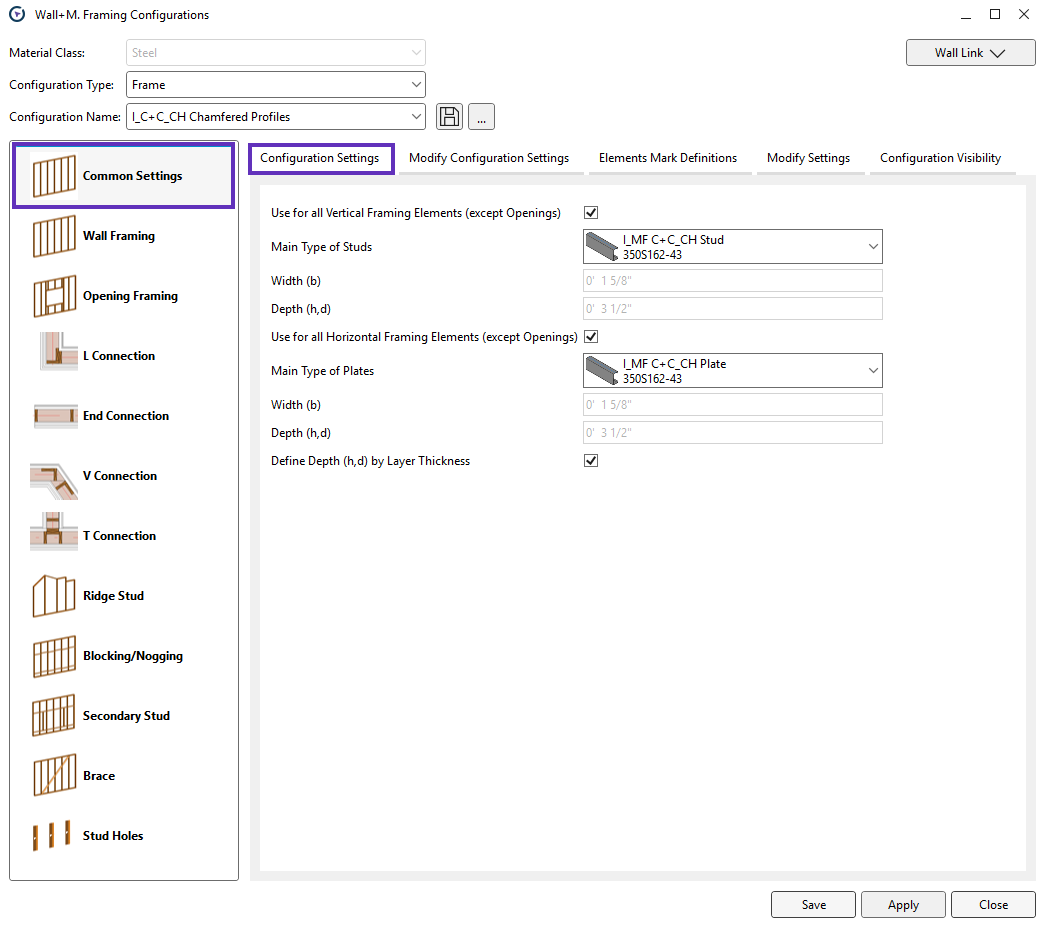

<figure><img src="/files/SRk1ROPqyFZ7qSkirbbs" alt=""><figcaption></figcaption></figure>

**Use for all Framing Elements (except Openings)** – if ON, then the selected Stud and Plate families will be used for other framing elements, like connections, bridgings, noggings, etc. without an option to change it to a custom family.

{% hint style="warning" %}
**Main Type of Studs** (or **Plates**) – pick a family and type for the Studs or Plates.

Sample stud and plate families come with **Wall+M**:

&#x20;\- For **C+C system** − *M\_MF C+C Stud* and *M\_MF C+C Plate*

&#x20;\- For **C+C Chamfered system** − *M\_MF C+C\_CH Stud* and *M\_MF C+C\_CH Plate*

&#x20;\- For **C+U system** − *M\_MF Stud-Joist* and *M\_MF Track M* goes for Metric system, *I* goes for Imperial.

**DO NOT MIX THE FAMILIES**
{% endhint %}

{% hint style="info" %}
You can use other families only in special cases. [**Contact us** ](https://helpdesk.agacad.com/support/tickets/new)[**to submit a support ticket.**](https://helpdesk.besmart.software/support/tickets/new)
{% endhint %}

<figure><img src="/files/DueXjQTAxRzJaVEdh7bt" alt=""><figcaption></figcaption></figure>

**Width (b)** – shows the width, b, parameter value of the selected family type.

**Depth (h, d)** – shows the depth, h or d, parameter value of the selected family type.

**Define Depth (h, d) by Layer Thickness** – the software will create a new type for the selected family and change the depth value to the wall layer thickness so that the frames will fit the layer in the wall.
