# General

### Add/Modify Details

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FnNEi23cArclyZFBK04wt%2F0.jpeg?alt=media)

**Add/Modify Details** – for placing details in the frame. It is recommended to use these functions at the end of the framing process.

*Recommended workflow: Create frame without details → Add additional elements → Split elements if needed → In the final step, add details. This will allow you to save time during the updating process when you frame a roof.*

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2Fm1wC5qNLSPLyUjSxuC3h%2F1.jpeg?alt=media)

### Details Configuration

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FgTgOXhvXlkBHs2yllWX0%2F2.jpeg?alt=media)

**Details Configuration** – definition of all detail placing parameters.

[**Read more about Details Configuration here**](https://docs.besmart.software/3d-modeling-and-design/wood-framing/roof-wood-framing/add-modify-details/details-configuration)

### Add Details

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F1rj9oiYhXYaOfZ3DohWW%2F4.jpeg?alt=media)

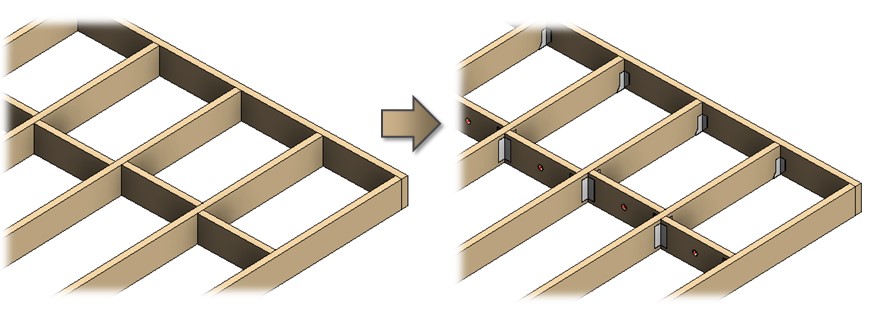

**Add Details** – adds details into selected roofs according to predefined configuration. Recommended to use this function at the end of the framing process.

*Recommended workflow: Create frame without details → Add additional elements → Split elements if needed → In the final step, add details. This will save time during the updating process when you frame a roof.*

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F0PO9VZGRWnFt0mOHtDZH%2F3.jpeg?alt=media" alt=""><figcaption></figcaption></figure>

### Modify Details

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FmN3vkLeYXmi9G3RQyf6S%2F5.jpeg?alt=media)

**Modify Details** – modifies selected roof details with custom settings if you need to make unique changes. All configuration settings are the same as in **Details Configuration**.

### Update Details

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FOS5I5UUSgQoKu8it7LTG%2F6.jpeg?alt=media)

**Update Details** – updates details if any changes were made to roof, e.g. opening was moved, roof was extended, etc.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FRllHNqU1tOntaKVy2ubp%2F7.jpeg?alt=media)

### Delete Details

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2Fe8dKiYPkpVUBqcvK7BPY%2F8.jpeg?alt=media)

**Delete Details** – deletes details from selected frame.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FvANNeJWj1MJMvsnLcPLR%2F9.jpeg?alt=media)
