Secondary Stud
Framing Configuration may be found in two locations:
or:
Secondary Stud
Secondary Stud – settings to add secondary stud system. It has the same settings as Blocking/Nogging.
Align with Project Base Point - You can align a Secondary Stud system with the Project Base Point.
With the ‘Align with Project Base Point’ feature, you can space and align all studs at the same time. Project Base Point handles positioning in a more robust manner: instead of directly defining the spacing only between the studs, you also define the grid spacing, and the function takes care of the rest. Studs from the Main Frame and Secondary Stud system are positioned on the gridlines so that they always match throughout the whole project.

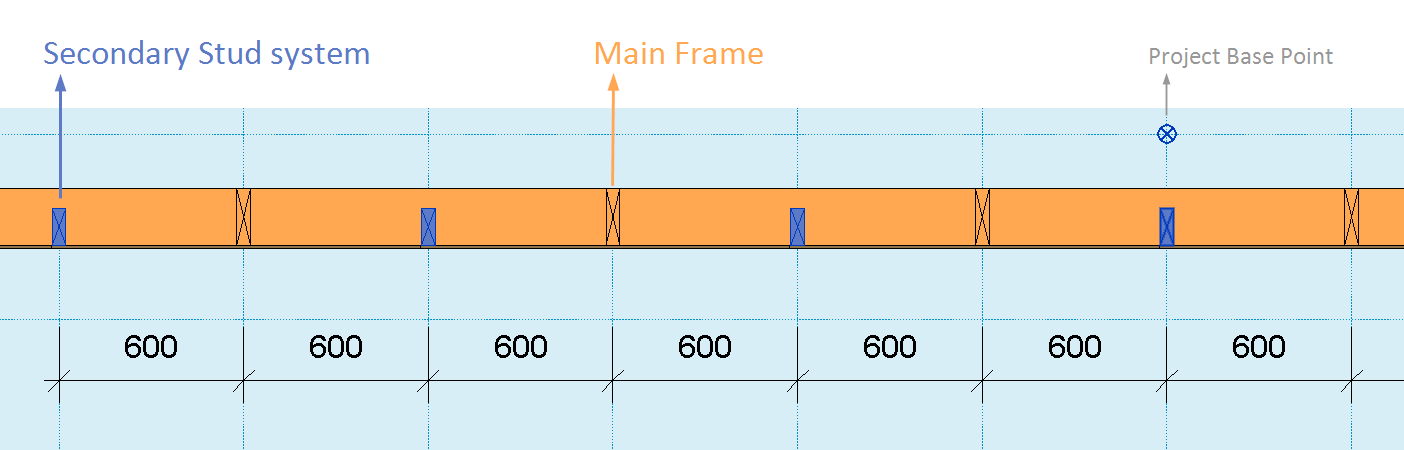

Notice how the studs of both the Main Frame and the Secondary Stud system are spaced according to the grid:
