Drawing Configuration – Sheets

Sheets

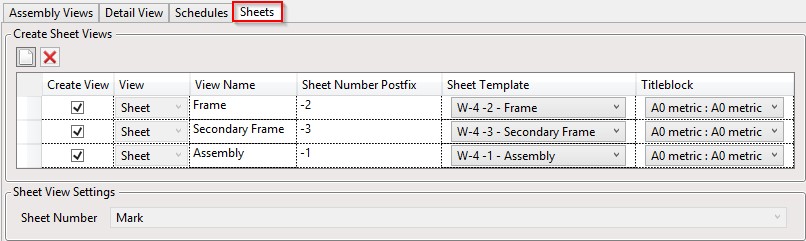

Wall+ creates sheets in the wall assembly using predefined settings.

Titleblock – select the titleblock family to apply to assemblies. The titleblock family list comes from your current project.

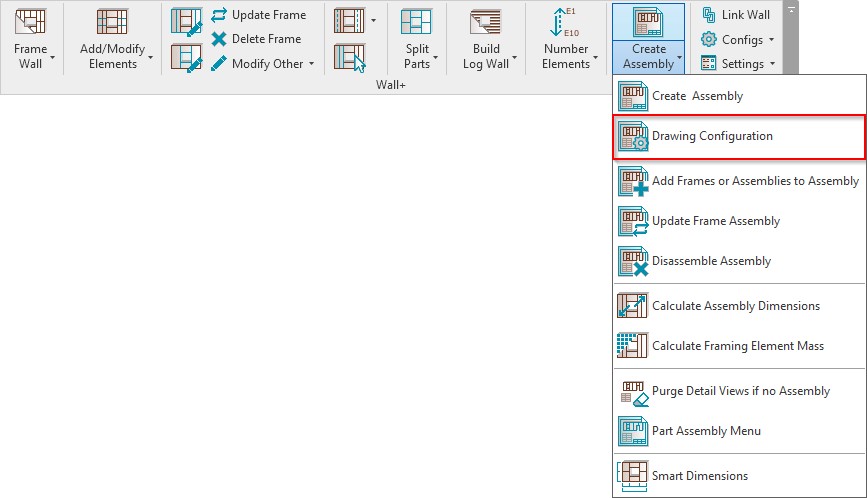

Create first assembly → add views to the sheet manually → open Drawing ConfigSheets → select a sheet to be a template for other walls.
