# Most Popular CNC Commands

MOST POPULAR CNC COMMANDS

Modified on: Fri, 8 Jan, 2021 at 2:37 PM

Down below are the most popular CNC commands.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FdGfzOEoaJReDTu93SNM2%2F0.jpeg?alt=media)

### NOTCH

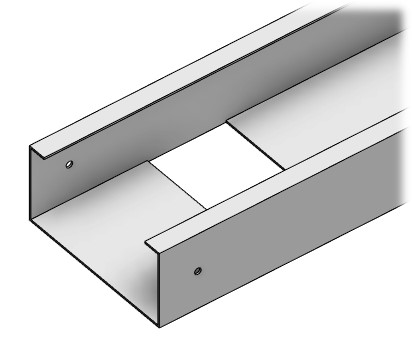

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FFbxfbxwOqZuCBQotPtwZ%2F1.jpeg?alt=media" alt=""><figcaption></figcaption></figure>

Punches out the full width of the web in an area the nominal height of the element. Allows through intersections or relief where necessary.

### LIP\_CUT

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FBOl2VDgcWz4OA7hxG6og%2F2.jpeg?alt=media)

Punches out the Lips in an area the nominal height of the element. Allows 'T' or through intersections or relief where necessary.

### SWAGE

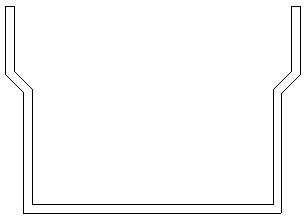

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FzVnIjLIMxjjYjHZgfDhY%2F3.jpeg?alt=media" alt=""><figcaption></figcaption></figure>

Crimps the element undersize to reduce the external dimensions to the

same as the normal internal dimensions over a localized area. Used for all internal components at intersections.

### WEB

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FjyzqFIAS0JkPko2CIpL4%2F4.jpeg?alt=media)

Punches extra fixing hole(s) in the product web. Used, for example, for joining walls to other walls or fixing to floors.

### SERVICE\_HOLE

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F88booTiJKaHYazPOfMwo%2F5.jpeg?alt=media)

Punches a large hole in the product web. Used for plumbing or wiring.

### DIMPLE

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FU7cZDCS0l2wpR6qEPEOo%2F6.jpeg?alt=media)

Punches the primary fixing hole in the product flange incorporating a recess for the screw or rivet head. Used in all framing intersection fixing.

### END\_TRUSS (chamfer)

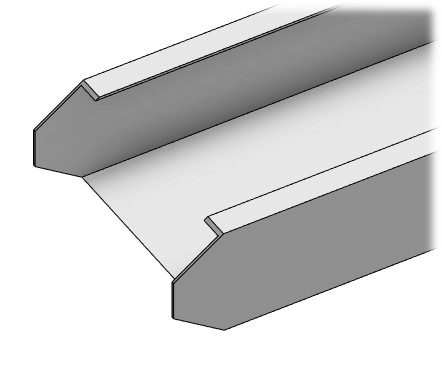

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FFpSxnATQ5ka91ZvUOD2U%2F7.jpeg?alt=media" alt=""><figcaption></figcaption></figure>

Notches mitres on the flanges on both sides.

Used for creating angular external intersections such as for struts and ties in trusses.

### SIDE\_TRUSS

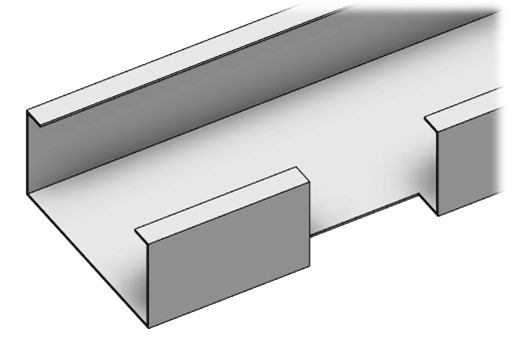

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FOvqhl8y6ulQwHzoJBKV2%2F8.jpeg?alt=media" alt=""><figcaption></figcaption></figure>

Notches out the flange on either or both sides. Used for creating flat in-line intersections, such as on “in-plane” trusses.

### SLOT

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FydACs92ySBhk30wtkB0d%2F9.jpeg?alt=media)

Punches the fixing hole in the product flange incorporating a recess for the screw. Used in all framing intersection fixing.

### FLANGE\_HOLE

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FVIQW9i2HOKliiTAV1TCk%2F10.jpeg?alt=media)

Punches holes in the product flange.

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FpeHEIlO6yszuJ5FvIZro%2F12.png?alt=media)


---
