# Network License Manual Activation

{% hint style="info" %}
Manual activation on the network license server is needed when your internet connectivity is limited
{% endhint %}

## For Admin

1. Navigate to 'Activation tab' > 'Manual activation'

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FBP57TqqWLWpTPbZoJFkp%2F1.jpeg?alt=media)

2. Insert and submit activation code to get a request file

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FnwDkgXRtrAHGVw96AMz4%2F2.jpeg?alt=media)

3. Save the [request file](#user-content-fn-1)[^1]\ <br>

   <figure><img src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/2043311390078/original/DxN73cf-Eom38lP3We5xx9H24JmqpTmoOA.png?1645693428" alt="" width="563"><figcaption></figcaption></figure>
4. Visit [the manual activation page](http://manualactivation.softwarepotential.com/) on any device
5. Browse for the previously saved request file
6. Activate the license

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2F5vUmqM8eCYTHqIHzfTNA%2F3.jpeg?alt=media)

7. Download '.bin' license file

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FtqlCccX6TDvkxrnK6A0A%2F4.jpeg?alt=media)

<figure><img src="https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FnT3DuMl0ODa6pBfpnyEK%2F5.jpeg?alt=media" alt=""><figcaption></figcaption></figure>

8. Navigate back to the [network license server](#user-content-fn-2)[^2]
9. Choose the previously saved '.bin' file
10. Click '*Install*'

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FN8blPG8RrbNRNkuHPzQC%2F6.jpeg?alt=media)

{% hint style="info" %}
We recommend saving the license certificate for future reference
{% endhint %}

## **For End User**

{% hint style="info" %}
Make sure your workstation has the [latest AGACAD Dock installed](https://docs.besmart.software/getting-started/quick-start/arkance-dock-installation-guide)
{% endhint %}

1. Launch Revit® > open any project
2. Navigate to the [license manager](#user-content-fn-3)[^3] > Manage

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FRbFII9XjLYrlteRjha9V%2F1.jpeg?alt=media)

4. Set your [license server address](#user-content-fn-4)[^4] > Save

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2Fpn3vkXjv0ep21tY3uf28%2F2.jpeg?alt=media)

{% hint style="info" %}
License server address is the server Hostname or IP address with port number '8731' \
\
Example: *http\://**YourServerName**:8731 or with IP address http\://**192.X.X.X**:8731*
{% endhint %}

5. You should now see a list of available licenses on the server.\
   Select your tool or solution > click 'Install'

{% hint style="info" %}

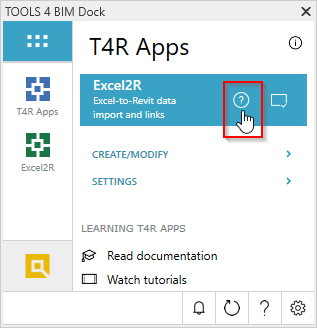

Technical documentation and training videos are available directly from the Dock\
\
Click the tool > click the '?' (question mark icon):

<img src="https://s3.amazonaws.com/cdn.freshdesk.com/data/helpdesk/attachments/production/2043292008684/original/BuT-IlN27NudrU0y0QNmfovF01R4hAmi7A.png?1640782453" alt="" data-size="original">
{% endhint %}

<details>

<summary>Having troubles?</summary>

1. Common solutions are listed in the [Troubleshooting guide](https://docs.besmart.software/getting-started/troubleshooting)
2. Reach out to <support@besmart.software> for personal assistance

</details>

![](https://239424168-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FqtUsszuAWXIZhQhrvjnb%2Fuploads%2FuyiGwiuuQMwvn0eNi7Xa%2F7.png?alt=media)

[^1]: &#x20;A '.txt' file will be saved on your workstation

[^2]: &#x20;*http\://**LocalHost**:2468/Web/Activation/Manual*

[^3]: The gear icon in the bottom right corner

[^4]: License server address is the server Hostname or IP address with port number '8731' \
    \
    Example: *http\://**YourServerName**:8731 or with IP address http\://**192.X.X.X**:8731*
