Howick CSV files do not export properly

You've successfully exported CSV files. However, you're having issues with the file itself:

• The file contains inaccurate punch names and locations

• You cannot find the CSV file in the exported folder

Read below to troubleshoot the issues.

Solution 1

Make sure to use C+C_CH Stud families in Framing Configurations.

1. Go to settings > Load Families:

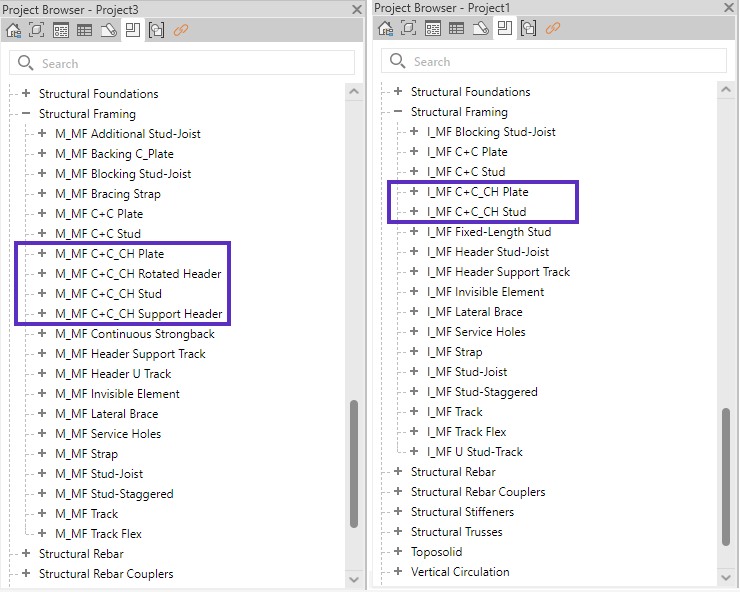

1. Loaded MF C+C_CH families will appear in the project browser:

1. Learn more:

Solution 2

If you're already using C+C_CH families, make sure to use them correctly.

1. Use C+C_CH Stud family types for vertical elements:

Learn more:

1. Use C+C_CH Plate families for horizontal elements:

Learn more:

Learn more in the links below.

Solution 3

If you're not using inverted cuts (e.g. vertical stud receives a notch/lip cut and a track receives swage), then:

1. Go to CNC Metal Exporter > Export Setup:

2. Uncheck the box Analyze Cuts for Inverse Connections

Learn more:
