# Load Families

**Load Families** – This option allows you to select and load sample families into your current project. It provides a range of predefined Metric and Imperial families, including framing, columns, rebar, and tag families.

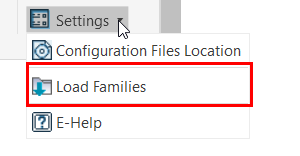

*The option can be found under the Settings drop-down list:*

<figure><img src="/files/7QhkqrpPBmfD1R9RxKrZ" alt=""><figcaption></figcaption></figure>

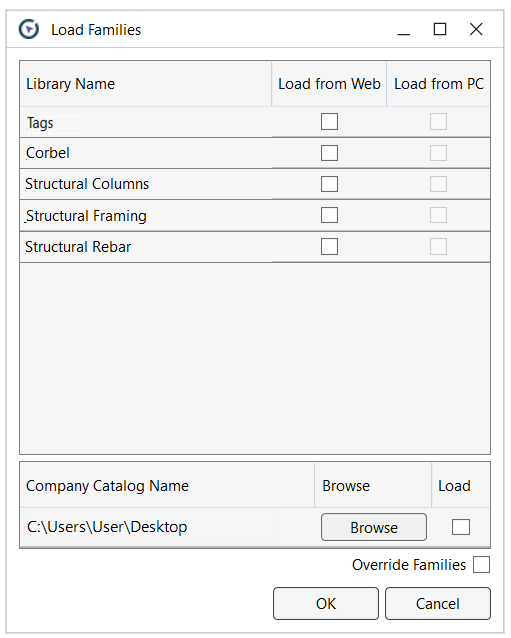

You can find the families in **Project Browser** → **Families** under **Structural Framing and Columns**, **Structural Rebars** and **Annotation Symbols** categories.

<figure><img src="/files/Qy4YUYJ0AM36g4eHkr8d" alt=""><figcaption></figcaption></figure>

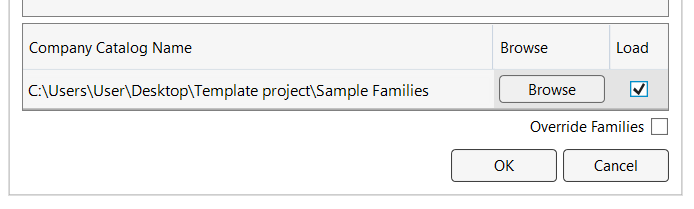

Also, you can have a path to company families.:

<figure><img src="/files/bkkE4S58ZqmNI3NBPWqE" alt=""><figcaption></figcaption></figure>

*<mark style="color:purple;">Default Metric and Imperial libraries are located here:</mark>*

C:\Users\\**User**\AppData\Roaming\Tools 4 Revit\Reinforcement & Structural Families

If you modify these families in the future, then you can hold them in your company template or place them in this catalog for upcoming projects.


---
